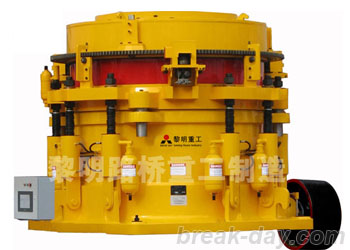

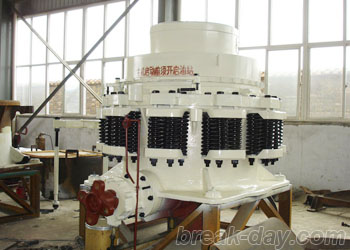

Cone Crusher

Brief introduction
HPC series hydraulic cone crusher adopts computer optimization design to speed up main shaft speed. It is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher. It is the most ideal equipment to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.







Features
Easy operation;
High crushing ratio and production efficiency;
Less spare part consumption and low operation cost;
Between-layer pressuring crushing and better finished product shape;
Hydraulic protection and hydraulic chamber clearing, high automatization and less stopping production and repairing time;
Thin oil lubrication makes the life time increased;
Various crushing chambers;

Technical Data

Type	Cavity (coarse/fine)	Min. Discharge Size (mm)	Feed Size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)	Movable Cone Diameter (mm)
HPC160	C	13	150	120-240	160	13	950
	F	6	76	55-180
HPC220	C	13	225	150-430	220	18	1160
	F	6	86	90-260
HPC315	C	13	290	190-610	315	26	1400
	F	6	100	108-320
HPC400	C	13	320	230-700	400	33	1500
