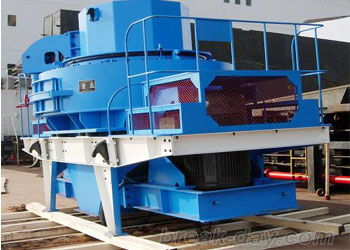

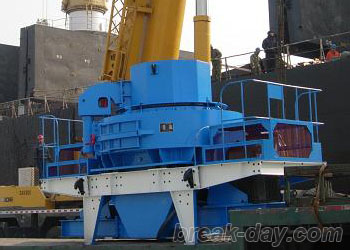

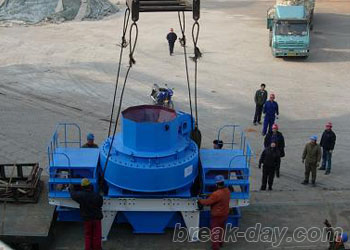

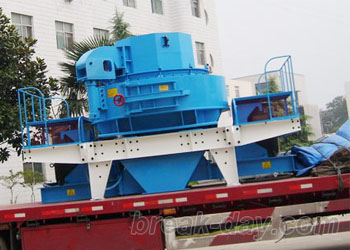

VSI Sand Making Machine
Brief introduction
VSI Vertical Shaft Impact Crusher with high-power and low-consumption absorbs the advanced technology of the same products of Barmac Company of America. VSI Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion.
Working Principle:
1. Center Feeding
Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of about 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.
2. Ring Feeding
Raw material falls down into feed hopper, then through ring, it is devided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.
Features
Simple structure and low operating cost;
High crushing ratio with low consumption;
Function of fine crushing and crude grinding;
Slightly influenced by moisture content of material, and the max moisture content is about 8%;
More suitable for crushing mid-hardness and high hardness materials;
Cubic shape of final products, high density of piling up and low iron pollution;
More wearable and easier maintenance;
Low working noise (lower than 75 decibel) and light dust pollution.
Technical Data
Model |
VSI7611 |
VSI8518 |
VSI9526 |
VSI1140 |
|
Capacity (t/h) |
Central and Ring Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
Central Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
|
Max. Feed Size(mm) |
Soft Material |
35 |
40 |
45 |
50 |
Hard Material |
30 |
35 |
40 |
45 |
|
Main Shaft of Rotating Speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
|
Power of Double Motor (Kw) |
110 |
180 |
264 |
400 |
|
Overall Dimension (L×W×H) (mm) |
3700×2150 |
4140×2280 |
4560×2447 |
5000×2700 |
|
Weight (t) |
7.5 |
10.5 |
13-14 |
16 |
|
Vibrating Sensor |
inspect scope: 0.1-20mm/s adjusted continuously |
||||
Lubrication Hydraulic Pressure Station |
Power for Double Oil Pump |
2×0.31 Kw |
|||
Security |
to make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter |
||||
Overall Dimension (L×W×H) (mm) |
820×520×1270 |
||||
Power for Oil Box Heater |
2 Kw |
