Super Pressure Trapezium Grinder Mill

Brief introduction
TGM Series Super Pressure Trapezium Mill is mainly used to make powder in the industries of metallurgy, construction materials, chemical, mining, electric power industrial, steel industry, coal industry, etc. It can produce powde of various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as barite, limestone, kaolnite, ceram and slags, etc. The powder size is adjustable in the range of 80-425 mesh. 30-80 mesh coarse powder can be produced with special device in the machine if necessary.

Working Principle

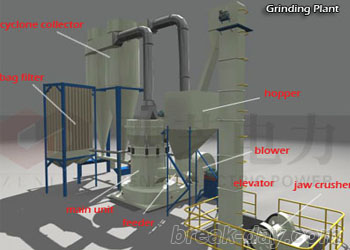

Raw material after being ground bettween ring and rollers goes upwards together with airflow to be classified by separator, powder meeting fineness requirement enters cyclone powder collector through pipe together with the airflow, and then is discharged from the outlet valve as final product. The circular air returns back to the blower, so the above process will be repeated, and the remaining air enters the bag filter in order to protect the circumstance. The whole operation process works in subpressure condition.

Features
Patent technology;
Trapezium design of ring and rollers enhance crushing effect;
Flexible connection reduces shock force;
Convenient adjustment and wide size range of final product;
National dust removal standard;
Easy maintenance;







Technical Data

Item\Model	TGM100	TGM130	TGM160
Roller piece	4	5	6
Roller Diameter×Height(mm)	Ф320×200	Ф410×240	Ф440×270
Ring Inner Diameter×Height(mm)	Ф980×200	Ф1280×240	Ф1600×270
Speed Of Main frame (r/min)	130	103	82
Max. Input Size (mm)	＜25	＜30	＜35
Product Size (mm)	1.6-0.045 fineness can reach 0.038	1.6-0.045 fineness can reach 0.038	1.6-0.045 fineness can reach 0.038
Capacity (t/h)	3-8	6-15	9-22
Overall Dimension (mm)	9910×5365×8310	7910×7000×9645	12550×5700×8355
Weight (t)	16	26.1	35
