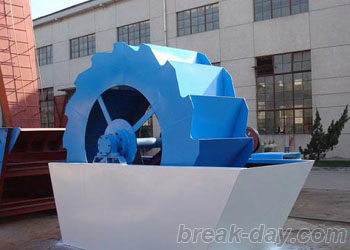

Sand Washing Machine

Brief introduction

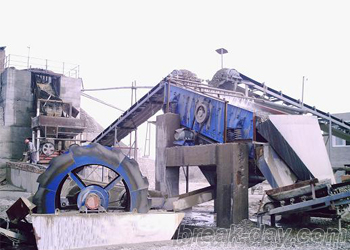

XSD series sand washing machine is a kind of wheeled washing equipment, and can clean and separate dust and powder from the sand. It is a kind of highly efficient sand washing equipment matching sand making machine. Sand washing machine is mainly used in building site, gravel plant, concrete dam building site of hydropower station, quarry, minerals, transportation, chemical industry, water conservation and hydropower, cement mixture station, etc.

Features
High degree cleaning-up;
Reasonable and simple structure;
Large capacity and low power consumption;
Small loss of the sands during the washing process;
Many advantages compared with traditional spiral sand washing machine;

Operating principle
The electric motor runs slowly with the impellor after decelerated by the belt of decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolling with the impellor, and grinding each other. The impurity covering the sand is washed away. At the same time, the strong water flow will take away impurity from washing launder. The washing function is finished. The clean sand and stone is lift up by vane. When the vane goes up slowly, the water begins to drop through the mesh and fall back into the washing launder. On one hand, water is removed from the sand and stone, on the other hand, the water can be fully used.





Technical Data

Model	XSD2610	XSD2816	XSD3016
Impeller Specification (D×W) (mm)	Φ2600×1000	Φ2800×1600	Φ3000×1600
Impeller Speed (r/min)	1.178	1.177	1.179
Max. Feed Size (mm)	10	10	10
Capacity (t/h)	20-50	30-60	50-100
Power (Kw)	5.5	11	15
Weight (t)	2.7	5.5	5.8
Overall Dimension (L×W×H) (mm)	3255×1982×2690	3540×3000×2880	3845×3000×3080
