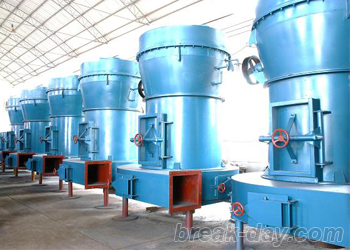

High Pressure Suspension Grinder

Brief introduction
High Pressure Mill is mainly used to make powder in the industries of metallurgy, construction materials, chemical, and mining, etc. It can produce powde of various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as barite, limestone, kaolnite, ceram and slags, etc. The powder size is adjustable in the range of 80-425 mesh. 30-80 mesh coarse powder can be produced with special device in the machine if necessary.

Working Principle

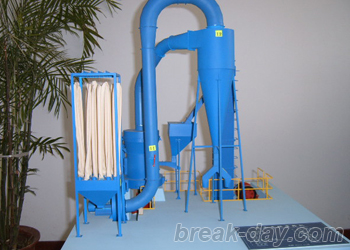

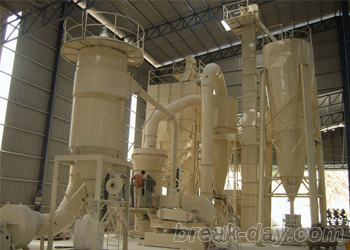

The raw material enters grinding chamber, shoveled up by the shovels and ground between the rollers and ring. The ground material is taken into separator along with the air from blower, and the qualified fine powder becomes final product and comes into the cyclone powder collector, the other unqualified powder falls down to be re-ground. The circular air returns back to the blower, so the above process will be repeated, and the remaining air enters the bag filter in order to protect the circumstance.

Features
Patent technology;
Higher capacity than other mills;
Wide size range of final product (30 mesh-1000 mesh);
National dust removal standard;
Easily adjustable separator;
Multi-class seals to keep the grinding equipment tightly closed;





Technical Data

Model	Roller quantity (pc)	Size of roller (mm)	Size of ring (mm)	Feed size (mm)	Size of powder (mm)	Capacity (t/h)	Motor power (Kw)	Weight (t)
YGM65	3	Φ210×150	Φ650×150	≤15	0.033-0.613	0.4-1.8	15	3.6
YGM75	3	Φ260×150	Φ780×150	≤15	0.033-0.613	1-3	18.5	4.8
YGM85	3	Φ270×150	Φ830×150	≤20	0.033-0.613	1.2-4	22	8
YGM95	4	Φ310×170	Φ950×170	≤25	0.033-0.613	2.1-5.6	37	14
YGM130	5	Φ410×210	Φ1280×210	≤30	0.033-0.613	2.5-9.5	75	24
