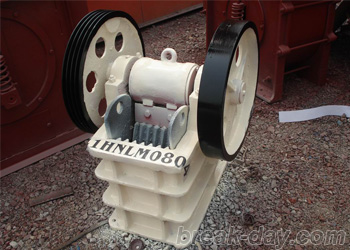

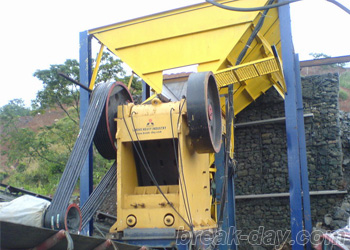

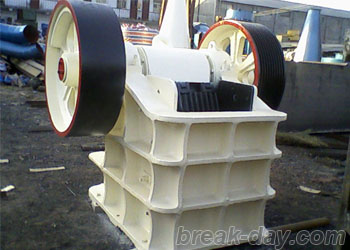

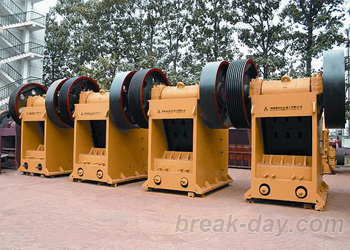

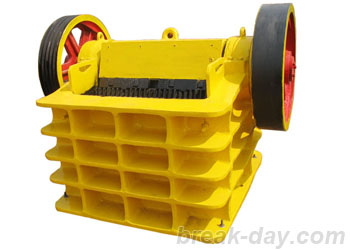

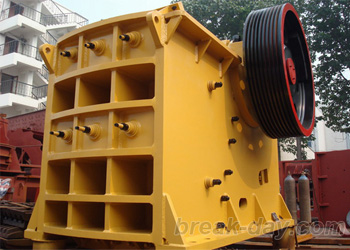

Jaw Crusher

Brief introduction
Jaw Crusher is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. The highest antipressure strength of material to be crushed is 320MPa. The jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, chemical industry, etc.

Working Principle
The motor drives pulley, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.

Features
High ratio of crushing;
Homogeneous final product size;
Simple structure;
Reliable working condition;
Easy maintenance;
Low operating cost;
Little noise and dust;
Safe and reliable lubrication;









Technical Data

Model	Max. Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)	Overall Dimensions (mm)
PE150×250	125	10-40	1-3	5.5	0.8	896×745×935
PE200x350	150	15-50	4-10	7.5	1.2	1100x1200x1190
PE250×400	200	20-60	5-20	15	2.8	1150×1275×1240
PE400×600	350	40-100	15-60	30	6.5	1700×1732×1653
PE500×750	425	50-100	50-100	55	10.3	2035×1921×2000
PE600×900	480	65-160	60-130	75	16.5	2290×2206×2370
PE750×1060	630	80-140	80-180	110	29	2620×2302×3110
PE900×1200	750	95-165	140-260	110	54	3789×2826×3025
PE1000x1200	850	195-265	315-550	110	57	3335x3182x3025
PE1200x1500	1000	150-300	400-800	160	88	4200x3750x3820
PEX150×750	120	10-40	8-30	15	3.5	1380×1658×1200
PEX250×750	210	25-60	10-40	22	5	1667×1545×1025
PEX250×1000	210	25-60	15-50	30	6.5	1550×1964×1380
PEX250×1200	210	25-60	20-60	37	7.7	1560×2104×1415
